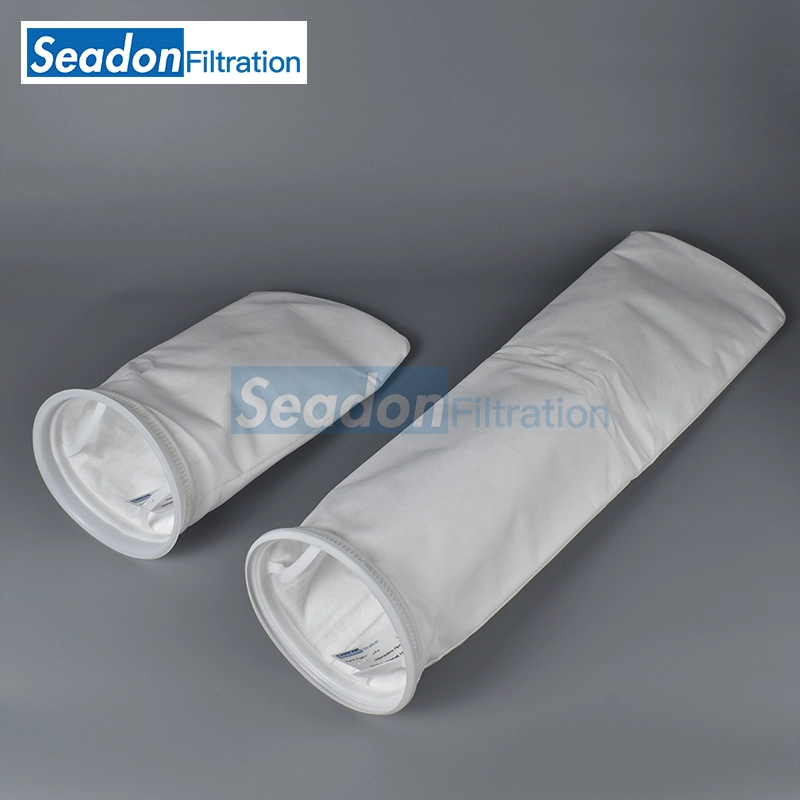

POMF series is a polypropylene microfiber filter bag. It is a direct replacement for the FSI POMF series filter bags. As a perfect equivalent, their performance is very close. The POMF contains three layers: a pre-filtering layer that removes coarse debris; the primary layer, composed of micro pores (for efficient particle retention); and an outer cover that prevents fiber migration. The finish-free fibers are non-foaming, which is ideal for food, beverage, water, chemical and coating applications.
POMF Microfiber Filter Bags
MATERIAL
Polypropylene
MEDIA TYPE
Microfiber
EFFICIENCY
Absolute
DESIGN
Oil Absorption
Features
- Three layers construction
- Fully-welded construction
- Broad chemical compatibility
- Spunbond cover prevents fiber migration to reduce waste
- Ultrasonic hot-melting tech for fully-welded construction, without any chemical binder
- Non-foaming microfiber offers product cleanliness, high performance and longer service life
- Polypropylene materials meet the regulations for food contact use under FDA CFR21
Applications
- Water
- Food & beverage
- Chemicals
- Coating
Specifications
Material
polypropylene microfiber
Seal Rings
Welded polypropylene FSI PolyLoc ring
Micron Ratings
1A, 2A, 10A, 25A, 50A, 90A, 120A, OA
Bag Size
#1: Φ7″ x 17″ (180 x 430 mm)
#2: Φ7″ x 32″ (180 x 810 mm)
#5(X01): Φ6″ x 20″ (152 x 510mm)
Filter Area
#1: 0.24 m2 (2.6 ft2)
#2: 0.48 m2 (5.2 ft2)
#5(X01): 0.19 m2 (2 ft2)
Max. Flow Rate
#1: 18 m3/h (80 gpm)
#2: 34 m3/h (150 gpm)
#5(X01): 16 m3/h (70 gpm)
*For liquids with a dynamic viscosity of 1 mPa·s @ 20°C (68°F).
Max. Operating Temp.
90°C (194°F)
Suggested Differential Pressure
2.4 bar (35 PSIG) max – dirty
0.7~1 bar (10~15PSIG) optimum change out
*Depending on the respective application requirements.
How to Order?
