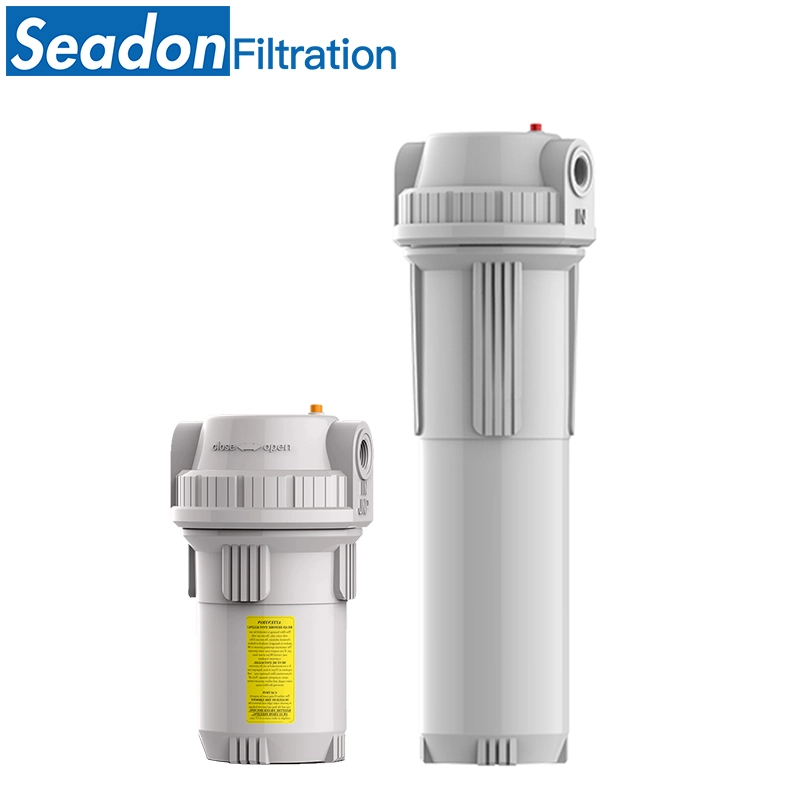

Big blue series single cartridge filter housings are made of polypropylene (PP). The housings are compatible with a broad range of chemicals and are available with a pressure relief button. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flowrate applications. Housings are available in both 10" and 20" lengths. They accept a wide variety of 4.5"(114mm) diameter cartridges.
PBC series Single Cartridge Housings
# CARTRIDGES
1
CLOSURE
Thread
COVER
Standard
DESIGN
Commercial Plastic
Features
- Large capacity housing suitable for high flow applications
- Pressure relief button
- Available in 10″ and 20″ lengths
- Accepts up to 4.5″ diameter cartridges
Applications
- RO pre-filtration
- Water treatment
- Seawater filtration
- Whole-House filtration
- Home drinking water
Specifications
Model
BSC
Pressure rating
6 bar (150 psi)
Max working temprature
40°C (104°F)
Cartridge number per housing
single
Cartridge diameter
4.5″
Cartridge Length
10″, 20″
Housing material
polypropylene
Sealing material
Silicone
EPDM
Inlet/Outlet
1″ F-BSP
Connection standard
BSP internal thread
NPT thread adapter
How to Order?
